Introduction of 16 Segment Display

What is a LED Segment Display?

The LED Segment Display is one of the types of LED displays, which use light-emitting diodes to provide illumination. LED Segment Displays, also known as LED Digit Display, are displays with a plurality of LEDs enclosed in fixed plastic components, and the components can be lit or not lit individually to show digit numbers.

What is a 16 Segment Display?

A 16 segment display (SISD) is one type of LED display, which is capable of producing light. A 16 segment display can be turned on to generate specific numbers, words, or graphic patterns. Due to the capacity of showing different kinds of graphs, 16 segment display is widely used to display digital information.

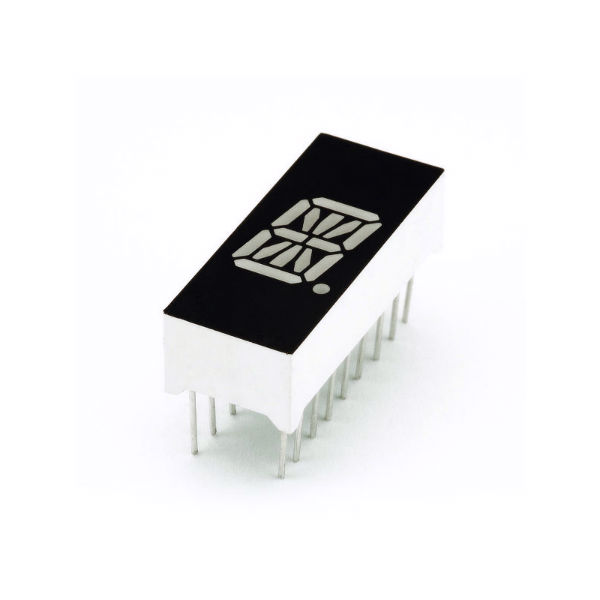

Figure 1: A 16 Segment Display

What are some Examples of 16 Segment Displays?

16 segment displays were created to display the complete Alphanumeric characters. For example, 16 segment displays are used to show Arabic numerals from 0 to 9, and the Latin Alphabets from A to Z, including uppercase and lowercase English letters.

Table 1: Examples of 16 segment display: numbers

Table 2: Examples of 16 segment display: Alphabets

Figure 2: Example of 16 Segment Display_Capital English Alphabet

Since the displays have more segments, 16 segment displays can represent more complicated letters than others. For instance, the sixteen segment display can also be used to display Thai numerals and Persian characters, which have higher complexity to show.

What are the Differences between 16 Segment Display, 7 Segment Display, and other Displays?

The LED segment displays were originally named by how many emitting areas they have. Besides, the light-emitting areas can also be called “segments” or “sections”. Take a 16 segment display for example, there are 16 segments in a single element.

Each light-emitting area has at least one LED in it. In addition, almost all displays have a circular emitting point at the lower right corner, and it is referred to as the Data Point or Decimal Point (DP). DP is sometimes presented as an additional segment, since it is commonly emitted as a comma, a decimal point, or a thousand-bit separator symbol.

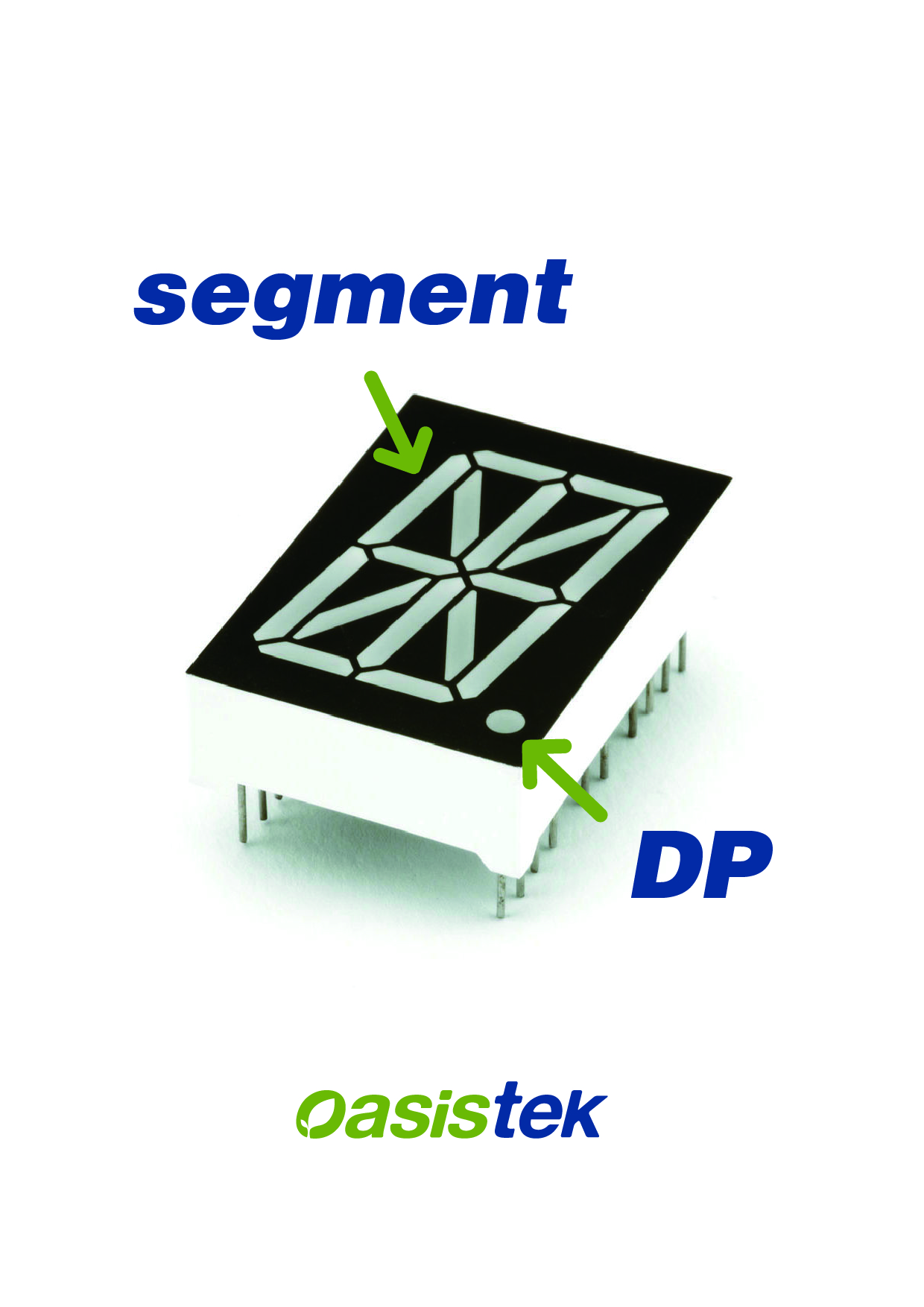

Figure 3: DP & Segment of 16 Segment Display

The 7 segment display, as known as the numeric display, is often used to display Arabic numerals. The 7 internal segments are named as A to G segments in a clockwise manner. When all the segments are lit up, it seems like “8” in Arabic numerals.

Figure 4: Example of 7 Segment Display_Arabic Numerals

On the other hand, the 16 segment display is an extension of the 7 segment display, consisting of six horizontal, four diagonal, and 6 vertical segments. The 16 segment display is designed to produce the complete English letters, including uppercase and lowercase English letters. Therefore, compared to the 7 segment display, it can display more details of Arabic numerals.

Other displays like 8, 9 , and 14 segment display can show more rounded digits than a 7 segment display. Because these displays have fewer bars, the prices are generally lower than a 16 segment display.

What are the Features of a 16 Segment Display?

16 segment displays might depend on one of several technologies. LED, LCD and VFD are the three most common optoelectronics types. The LED is usually manufactured in two ways, single or dual character packages, and one element of 16 segment displays can also be combined as a suitable length to display text sentences in different applications. For example, Oasistek’s Digit Display can be categorized into 5 categories, including single, dual, triple, four, and five digit display.

Oasistek’s TOS-15103 16 segment display can represent Alphanumeric characters. With lower current operation required, TOS-15103 can be functioned with higher efficiency. Moreover, TOS-15103 has a flexibility to design based on different customized needs.

What are the Advantages of the 16 Segment Display?

The 16 segment display can represent characters with a wide range accurately and clearly, since the product has more lines to be lit up. When seeing the digital information demonstrated by a 16 segment display, people can distinguish the digital messages more efficiently and quickly. Also, the 16 segment display has the capability and flexibility to represent a wide variety of different text types. Designers can determine different digital fonts according to product applications.

What are Applications of a 16 Segment Display?

LED digit displays are widely used in several ways, such as home appliances, financial displays, medical and industrial instruments, etc. In addition, 16 segment displays are especially used on electronic devices, like VCRs, refrigerators, water heaters, air conditioners, and telephone Caller ID displays.

In our daily life, almost all equipment with panels displaying digital information is equipped with a 7 or 16 segment display. For instance, the panel of a running machine showing your heart beats, the running mode, running distance and speed, and the welcome information of how to start the running machine is one of the applications of Alphanumeric display.

What Colors can the Chips of 16 Segment Displays Emit?

16 segment chips can emit many kinds of colors. For example, red, orange, yellow, and green are emitted colors of 16 segment displays’ chips. According to different applications, the emitted colors are also available to be adjusted.

Why to choose Oasistek?

Taiwan Oasis Technology Co., Ltd. (Oasistek) has long been dedicated to the production and R&D of Light Emitting Diodes (LED) components for more than 48 years. When determining models of LED Segment Display, it is necessary to choose the most appropriate product according to types, colors, sizes, brightness and digital symbols of the product. There are several reasons to choose Oasistek’s semiconductor and LED Display:

• Manufacturing Integration: Oasistek has a complete and scientific quality control system. Furthermore, the R & D team of Oasistek integrates optics, circuits, controls, and mechanisms to improve manufacturing quality.
• Customization: The customization including adjusting colors of beam and the surface of display is available. Oasistek devotes our resources to meet different needs.
• Worldwide Certification: Oasistek incorporates safety systems in every step of our manufacturing process. Besides, we have global certification to serve clients in both domestic and international markets.
